NH Notes: Bent Rock on Display – The Sideling Hill Road Cut

The road cut through Sideling Hill in Maryland on I-68 is one of the best displays of roadside geology east of the Mississippi River.  Having spent considerable time in the western US it doesn’t seem that impressive to me but since I’ve been deprived of seeing geological strata for the past year I took a little detour on our family trip to North Carolina to check this road cut out.  With the rest of the family sound asleep in a small hotel in Hancock MD I slipped out at 5 am on a brisk June morning to catch the sunrise at Sideling Hill on Interstate 68.

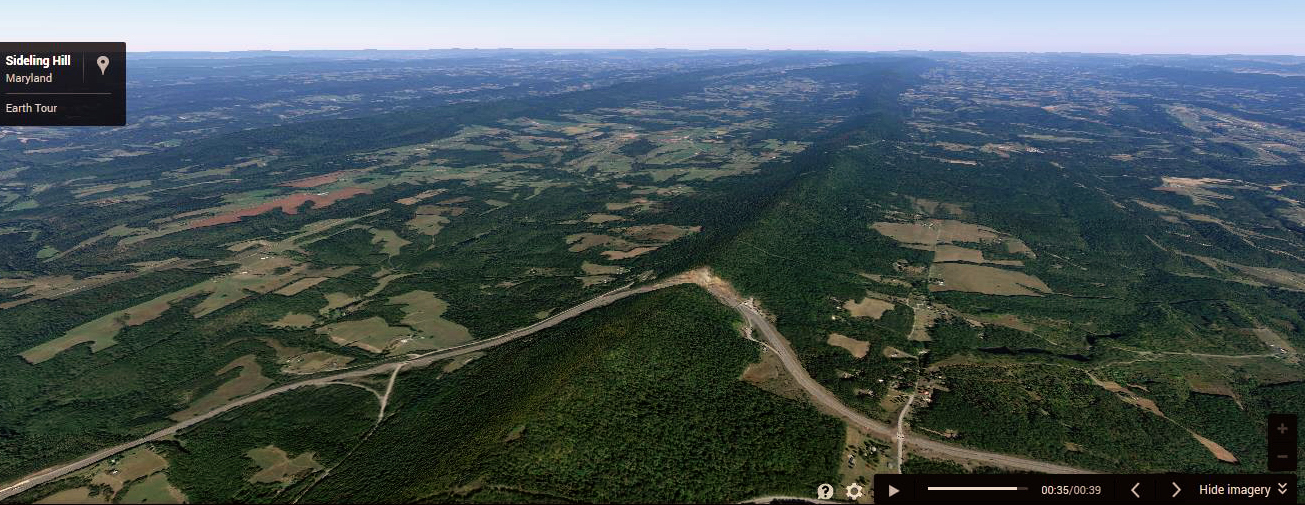

The road cut through Sideling Hill as viewed by a screenshot of a Google Earth video.  Sidling Hill runs to the north into Pennsylvania in this picture.  Image: Google Inc.

The road cut through Sideling Hill as viewed by a screenshot of a Google Earth video. Sidling Hill runs to the north into Pennsylvania in this picture. Image: Google Inc.

Yes, rock does bend.  There are hundreds of layers of rocks here that must have originally been the result of horizontal deposition.  The layers of coal, sandstone and shale rocks here would have become solid while still horizontal and them were slowly warped by constant pressure and heat over long periods of time.   On display here are over 800 feet of strata in a folded syncline.  The long mountain ridge that is Sidling Hill runs North and South and is the result of an erosion resistant sandstone layer at the top of the ridge.  Below is a diagram of various ways that rock can be folded.  Sideline Hill is most like the synclinal ridge.

Rock folding caused by compression resulting from continents pushing against each other.  The folds and thrust faults shown here are seen all over the central Pennsylvania region and into West Virginia and Maryland including Sideline Hill which is a syncline.

Rock folding caused by compression resulting from continents pushing against each other. The folds and thrust faults shown here are seen all over the central Pennsylvania region and into West Virginia and Maryland including Sideline Hill which is a syncline.

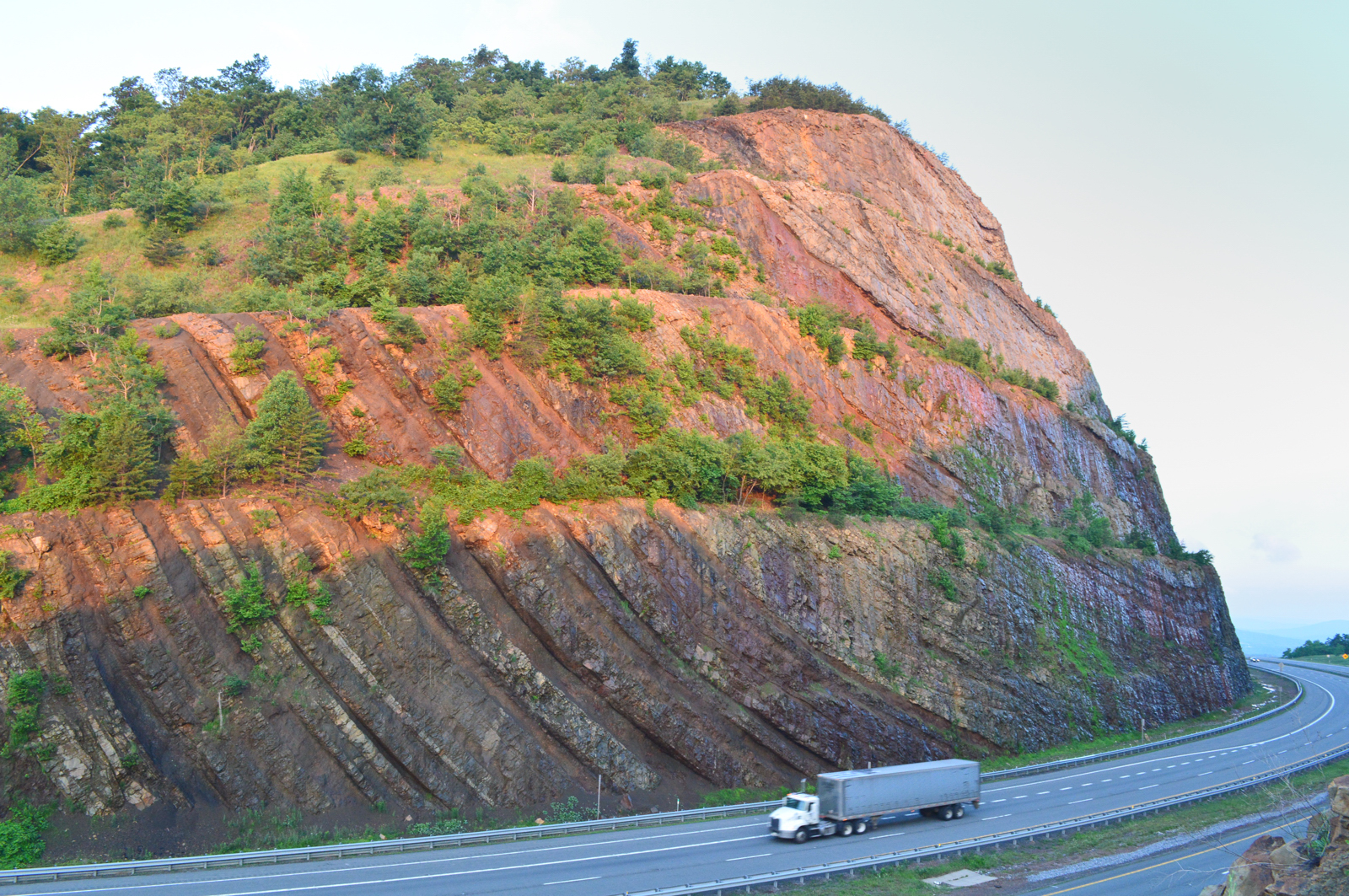

Sunrise hits the southside rocks of the Sideling Hill road cut along I-68.  I took this picture with the truck for scale. Image: Joel Duff

Sunrise hits the south side rocks of the Sideling Hill road cut along I-68. I took this picture with the truck for scale. Image: Joel Duff

Here the sunrise is just hitting the top of the south  side of the road cut.  I took the picture with the truck for scale.

The bend in this rocks would have formed from millions of years of compression while there were still hundreds or thousands of feet of rock still on top of these layers.  As the horizontal layers folded they also were eroding. Eventually the entire region saw thousands of feet of rock erode leaving many ridges like this one and hundreds of others in the MD/PA/WV region.  It might be tempting to think that these layers bent very soon after they were formed and were still soft but as intuitive as that may feel there is no evidence to support that.   Soft layers would have mixed rather than bent.  If all these layers were somewhat soft when they bent why would they have suddenly become rock shortly thereafter?   The erosion that occurred to this area to produce these ridges makes sense only if all the layers were solid rock as the layers were bent.    You might think that rock would shatter rather than bend.  These rocks are full of billions of very tiny stress fractures but much of the rock is truly bent due to the enormous pressure placed on them over time (see this article on plastic deformation for an explanation).  However had they been bent quickly – say in a hundred to 100,000 years – then those cracks would be far more significant and complete rupture of the layers would have occurred.

For an excellent discussion of folded rock and its implications read this post from Questioning Answers in Genesis: Rock Layers Folded not Fractured, or are they?

This picture was taken from the center of a pedestrian bridge that crosses the freeway connecting parking lots on both sides.  Image: Joel Duff

This picture was taken from the center of a pedestrian bridge that crosses the freeway connecting parking lots on both sides.  The U-shaped bending of the rock is very obvious on the right side.   Image: Joel Duff

There is pedestrian bridge that crosses the interstate on the east side of the road cut. There is an opening in the fence so you can take a picture here.  You can very easily see the U-shape bend to the rock layers here.  The very top layer in the middle is a hard sandstone that is resistant to erosion contributing to the formation of the long ridge.

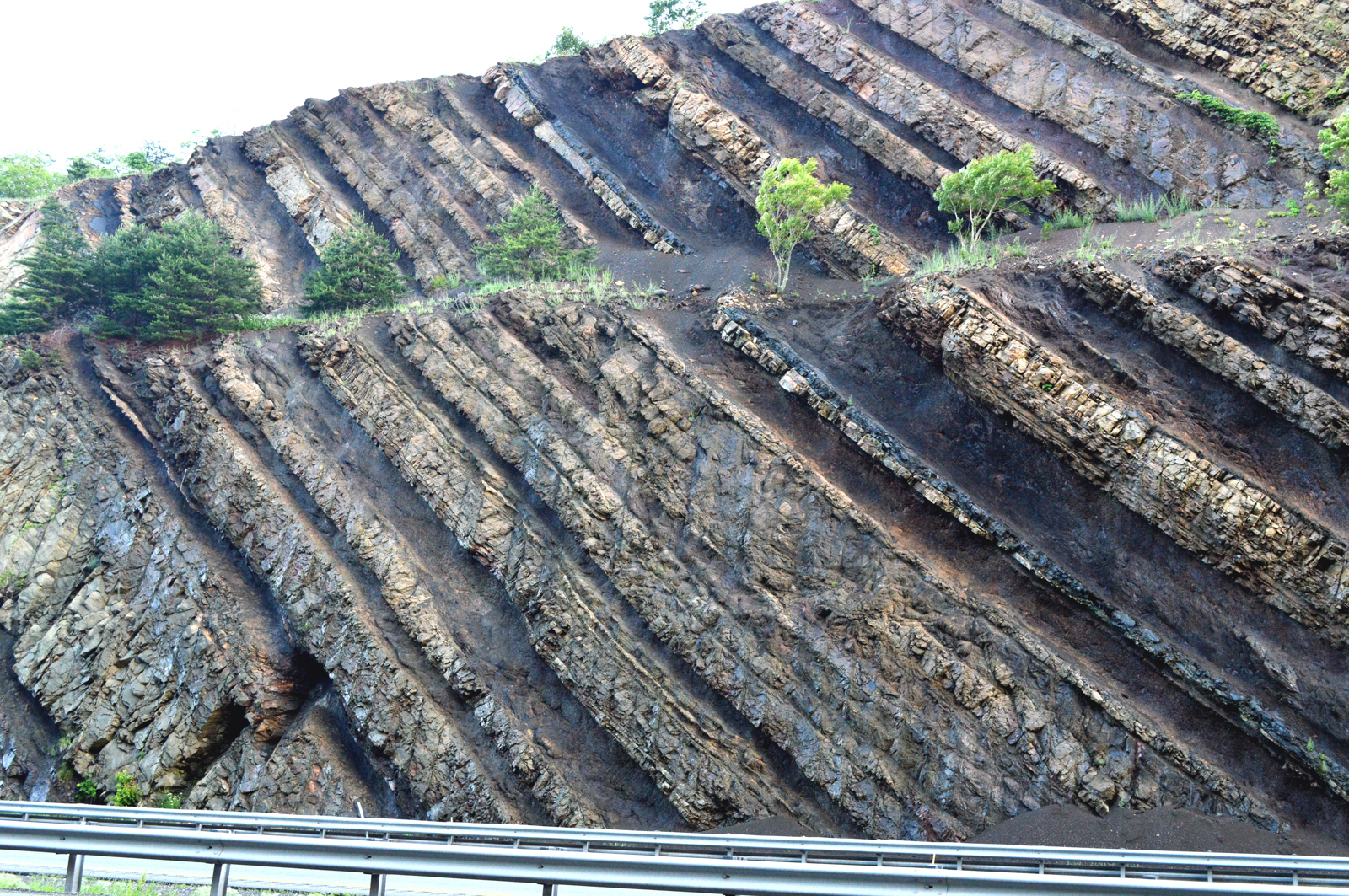

A portion of the western side of the Sideling Hill road cut on the north side of the road. Image: Joel Duff

A portion of the western side of the Sideling Hill road cut on the north side of the road. Image: Joel Duff

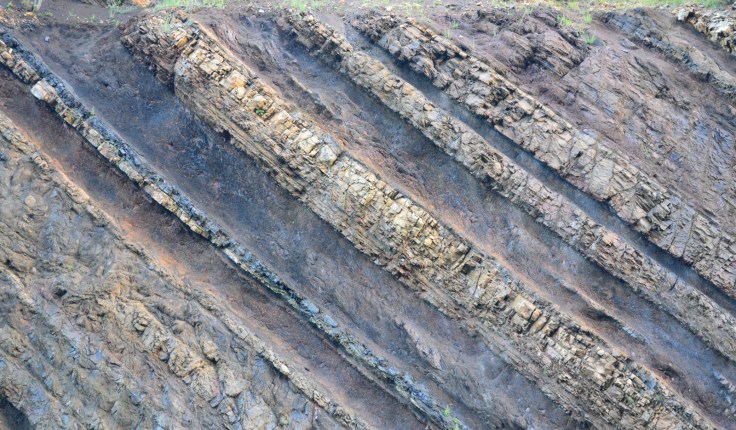

Bands of conglomerate rock, shales and coal are seen in the close-up of the Sideling Hill road cut.  Image: Joel Duff

Bands of conglomerate rock, shales and coal are seen in the close-up of the Sideling Hill road cut. Image: Joel Duff

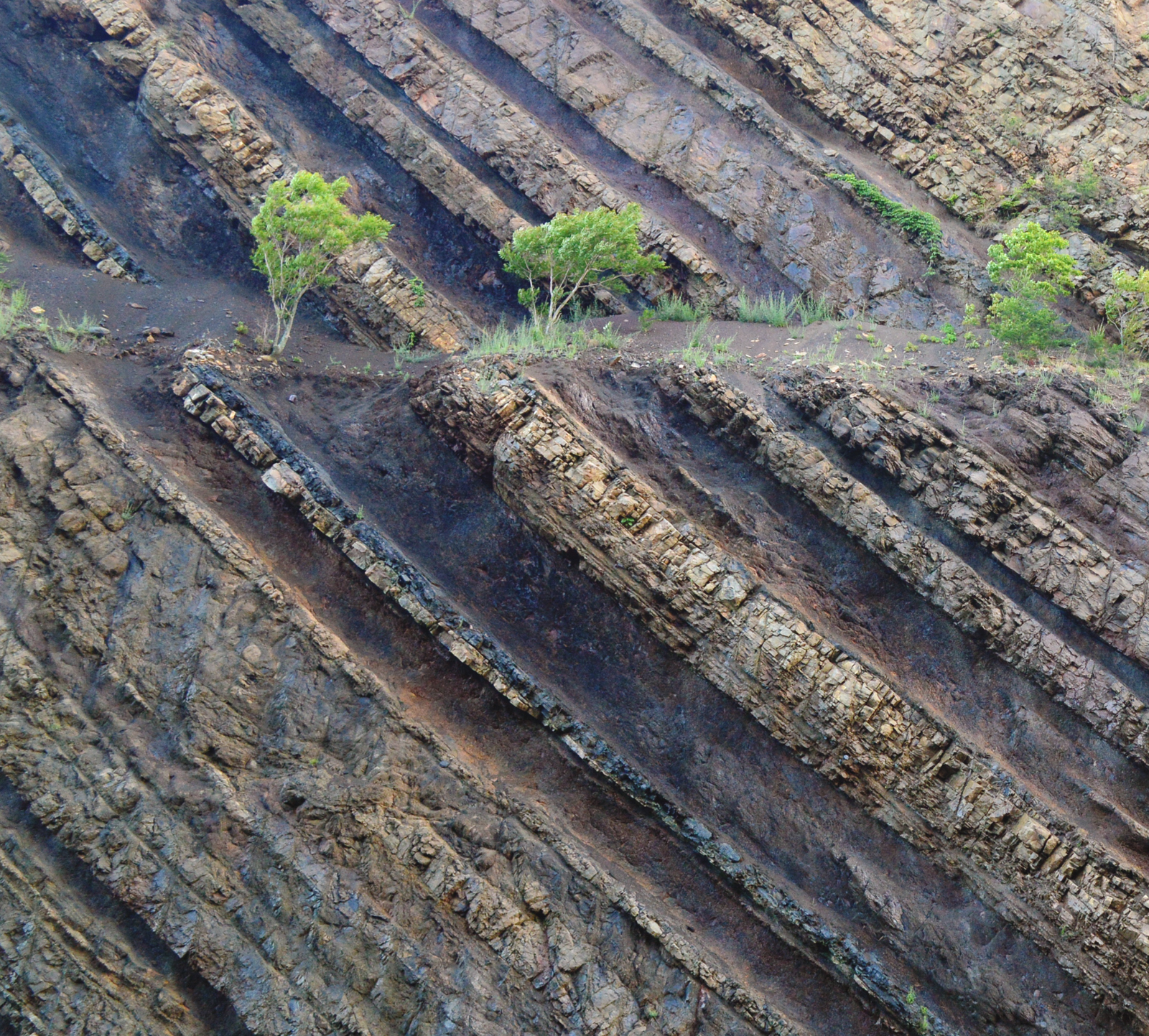

Above and below show the alternating bands of shales and sandstones.  The darkest bands are organic rich coal seams.

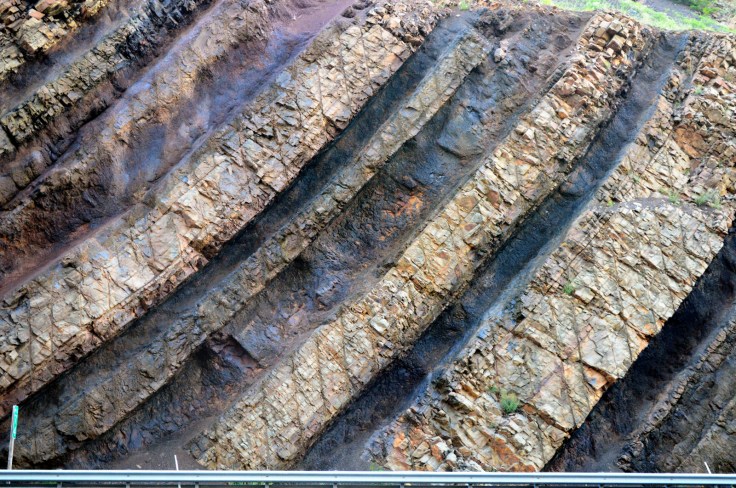

On the eastern side of the road cut you can clearly see the bending of the layers of rock layers.  The vertical lines are drill marks for setting explosives.  Image: Joel Duff

On the eastern side of the road cut you can clearly see the bending of the layers of rock layers. The vertical lines are drill holes for setting explosives. Road sign and guardrails at bottom for scale. Image: Joel Duff

Many layers of rock dip down on the west side of Sideling Hill.  Image: Joel Duff

Many layers of rock dip down on the west side of Sideling Hill. Image: Joel Duff

On display in these layers or rock are a record of a changing environment from wetland to shallow seabed and back over long periods of time.

A view of the Sideline Hill road cut on I-68 from I-70 near Hancock MD about 7 miles away.  Image: Joel Duff

A view of the Sideline Hill road cut on I-68 from I-70 near Hancock MD about 7 miles away. Image: Joel Duff

Sidline-hill-road-cut-sign-elevation1269

Sideling-road-cut-I68-Maryland-NorthSide1600px

Loughshinny_folds-rock-bent-wikipedia

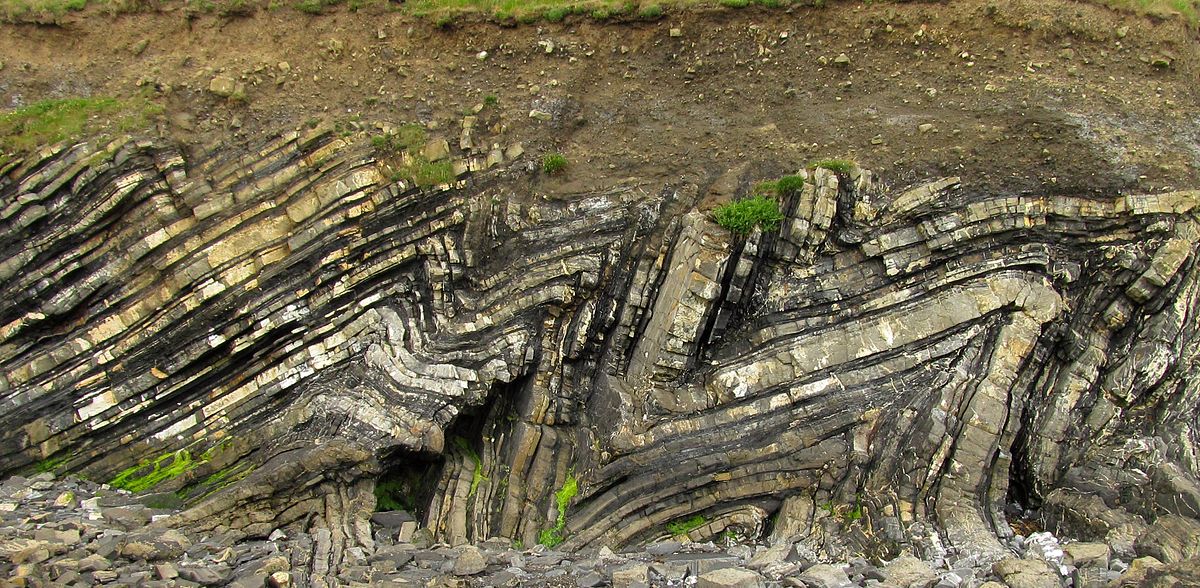

Another example of folded rock from Wikipedia. Here there are layers of rock folded but then after the folding the top layers were eroded and a layer of loos sediment deposited on top of these rocks. What is different about these folds are that there4 are clearly fractures in the folds indicating these were not soft layers of sediment.  Image from Wikipedia User Siim Sepp (Sandatlas)
