Finding Mars on Earth: A Conversation about Martian Meteorites

The evidence continues to accumulate: Mars used to be wet.  It used to have a much more active hydrological cycle. The Mars Couriosity Rover has been revealing the complex geology of Mars including the deposition of sedimentary rocks (Curious Geology: Stunning Images Reveal a Complex Mars) but we have been able to study the watery past of Mars right here on Earth.  We have made measurements with sophisticated instruments in a lab here on Earth of the interior of a shiny black rock. That rock has quite a story to tell about the history of Mars.

Wait a minute you say?  How have we examined a Martian rock in such detail!  I know that Curiosity rover has some amazing instruments on it but even so all it can do is stoop down and zap a bit of its surface and give it a “smell”.    I don’t remember Curiosity or any previous Mars rovers ever sending rocks back to Earth for us to investigate.

Ah, that’s right. No rocks have ever been retrieved by man from Mars like they have from the moon. Rather, what geologists have here on Earth are rocks that Mars has sent to Earth.  These messengers from Mars come in the form of Martian meteorites.

I’ve heard of meteorites, but rocks from Mars have been found on Earth?  If I pick up a rock on Earth how would I know that it came from Mars, Earth, the Moon or somewhere else in the solar system?

Well, first meteorites aren’t always easy to recognize as alien rocks on Earth but some rocks found on barren ice fields in Antarctica or sand dunes in large desert regions can readily be inferred as being of extraterrestrial origin.  Some rocks have been witnessed plunging to Earth and picked up.   In addition to some meteorites that are confirmed by eyewitness accounts, meteorites usually have atomic elements in abundance that are rare on Earth or have ratios of isotopes or elements that differ from any known rock forming process on Earth and thus can be reasonably inferred to be not of this Earth.

But what about meteorites from Mars?

Even if we can be confident that a rock is a meteorite how would we know it came from Mars?  While the composition of the rocks themselves is a strong indicator of their origin because we have now examined rocks on the surface of Mars for comparison, there is another piece of “smoking gun” evidence for identifying many of the meteorites on Earth as having Martian origins.  The story is best told with meteorite ALH84001. The claim to fame of this meteorite is that, way back in 1996, some NASA scientists reported provided possible evidence of past life on Mars. This meteorite was found in Antarctica in 1984 along with many other meteorites. When the meteorite was examined they found gasses trapped in the mineral crystals inside the rock. Those gasses matched the composition of the atmosphere of Mars as measured by that Voyager Spacecraft lander that took measurements on Mars way back in 1976.

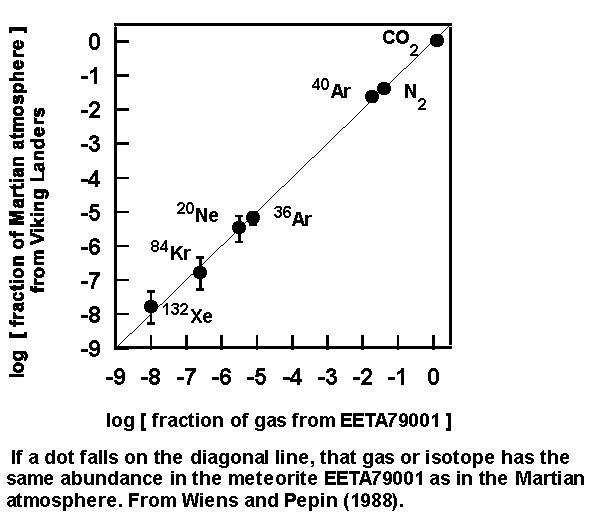

Mars has an atmosphere of 95% carbon dioxide, 3% Nitrogen and a bit of Argon, Xenon, Neon and Krypton gases the latter three of which are found on Earth but in much lower concentrations.  The fact that gases in these meteorites have similar gasses and ratios of these gasses strongly suggests that these volcanic origin rocks formed on the surface of Mars where they trapped gasses of its atmosphere when the lava solidified or when the rock was melted on impact.

That sounds pretty interesting but still quite fantastic.  Couldn’t these meteorites just be contaminated with gases from Earth since these meteorites have been sitting on the surface of the earth for possibly thousands of years?

There is certainly a potential for contamination but two observations make that very unlikely.  First, the tests for the gases trapped in the rocks crystal structure are done by cutting deep into the meteorite while it is in a chamber of neutral gas thus reaching untouched crystals which almost certainly the earth’s atmosphere hadn’t been in contact with. Second, if there was contamination, that contamination would cause the gases to appear more like Earth not like Mars.  Our atmosphere is only 0.03% carbon dioxide so it isn’t going to diffuse into a rock and become more concentrated but would rather dilute the CO2 in a Martian rock. The same is true for the other Martian gases.   The amazing correlation of the gases in these rocks with the Martian atmosphere gases makes the hypothesis that these rocks are in fact from Mars the best supported hypotheses that anyone has yet proposed for the rock’s origins.

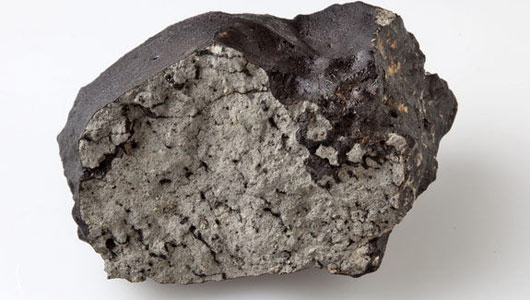

We can see an example of this if we go back to the meteorite that I alluded to in the introduction.  That meteorite named Tissint was observed crashing to Earth in Morocco in July of 2011 and pieces of Tissint collected very soon after.  Some of those pieces made their way into the hands of museums, private collectors and researchers. This meteorite was shown to have the molecular composition similar to that of other Mars rocks and the gases also were a close match to those that the Viking lander measured in 1976. This meteorite was seen arriving on Earth so we know for sure it is a meteorite and unlike other Mars rocks that have been found this one was collected very quickly from dry desert so the amount of weathering and contamination it has experienced is very minimal.

This particular meteorite has become well known among scientists due to cracks in the meteorite that are filled with glassy crystals. These crystals are thought to have formed when this rock was on Mars at a time when large asteroid or meteorite struck Mars heating this rock on impact and so trapped gases and other molecules from the surface of Mars in the rock.   This has given scientists on Earth the opportunity to study a Mars rock, and thus Mars, in great detail.  The first thing that have observed is that some of the minerals in Tissint appear to be the result of chemical changes as the result of the interaction with water and so this has provided additional evidence that surface rocks on Mars used to have much higher water content than they do today.

Ok, I get it, these rocks have all the signatures of being just like rocks from Mars and yet here they are on Earth.  The data and logic to explain them seems quite reasonable but before I can really believe that pieces of Mars are lying around on Earth I have to ask one big question.  How did these rocks get here!!!  If there isn’t a mechanism for how they got here than all the evidence in the world for them appearing to be from Mars is hard to swallow.

That’s exactly the question you should ask, though acceptance of something doesn’t necessarily require that you know the mechanism for how it came to be. As an aside, you accept the fact of gravity without being able to really explain how it works. But in many cases you are correct that having a mechanism goes a long way to making the end results more acceptable.  In the 1930s, Alfred Wegner had a lot of great reasons to believe that the continents had moved around over time but he lacked a mechanism for how they moved and so his theories were dismissed for decades. Eventually a number of technologies allowed discoveries that lead to plate tectonic theory which is the mechanism to explain Wegner’s ideas about continental drift.

But back to our story.  Fortunately I do have a hypothesis for how rocks have gotten from Mars to Earth and it doesn’t rely on little green men.  It relies on the story that the surface of Mars tells us.  A quick look at the surface of Mars reveals thousands of craters. The largest craters are best understood as the product of massive impacts that were so large that material from Mars would have been ejected into space from the surface.  How do we know this?  Geophysicists, knowing something about the gravity, density of the atmosphere and the rocks composition can calculate the size of impact needed to create ejection speeds fast enough to escape the gravity of Mars.

Remember that Mars is much smaller than Earth and so the escape velocity is much lower than it is for Earth. Crunching the numbers scientists have determined that there are multiple craters on Mars that fit the criteria and thus likely ejected hundreds of millions of pieces of Mars into space.  That process of impact and ejection would itself alter the rocks (melting, fusing and trapping gases) and we can see those alterations in the meteorites from Mars on Earth which also distinguish them from other Meteorites which have never been part of a planet before.

So here are the steps:  1) Large asteroid/meteor strikes Mars and ejects millions of pieces of Mars into space.  2)  Some of those pieces may end up in orbit around Mars for some time with some falling back and causing some of the smaller craters seen on Mars today but many of the pieces simply drifting off into space at speeds and directions determined by their expulsion rates and vectors.  3)  Some of those pieces end up drifting toward the Sun because of it’s gravitational pull.  4) At some point some of those pieces find themselves intersecting with Earth’s orbit and crash through its atmosphere and some of them make it to the surface to be picked up by an eager meteorite hunter.

Isn’t Mars is a long way away? How long would it take to get to Earth?

Mars is a long way away!  The average distance from Earth to Mars is 156 million miles but it can be closer.  The rocket carrying the Curiosity Rover to Mars made the trip in just 254 days travelling at speeds of 500,000 miles per day or 21,000 miles per hour.  Of course those speeds were assisted by rocket boosters after leaving Earth’s orbit.  Meteors from Mars aren’t expected to make the trip nearly that fast but rather are thought to slowly drift in space for hundreds of thousands if not millions of years before intersecting with the Earth.

This still sounds a bit fanciful to me.  How do we know meteorites took that long to get here and how could so many rocks from Mars run into this tiny blue ball 150,000,000 miles away?

The transit time isn’t just a guess but can be crudely calculated by something called cosmic ray exposure age.  The idea is that when rock, like one exploded off the surface of Mars, is exposed to outer space it will be bombarded by cosmic rays from the Sun and the rest of the galaxy.  These rays produce new isotopes in the surface layers of the meteorite. The longer that the meteorite is exposed the more of these chemical isotopes will build up. When the rock finally lands on earth it no longer be affected the same way and those isotopes won’t continue to build up.  So this is a form of radiometric aging in that the amount of isotopes are measured and given an average cosmic ray exposure the time of exposure can be calculated.  The dates are rather crude but still give a sense for age ranges.  Most of the Mars meteorites have exposure times estimated in the tens of millions of years.  This most recent Mars meteorite that fell to earth in July of 2011 had a “low” exposure estimate of 700,000 years give or take a couple hundred thousand years.

So you are saying that these Mars rocks have taken possibly millions of years to travel between the planets.  But I believe the Earth is only 6000 years old.  Can I still believe that these rocks actually were on the surface of the Mars in the past?

I can’t say that the evidence can provide much comfort at this point. If this Tissint meteorite had only been in transit for 4000 years one would expect to find barely any discernible cosmic induced isotopes and yet there are plenty in this Meteorite.  These isotopes are barely formed on Earth nor would the rock on Mars be expected to have accumulated these isotopes either.  My calculations suggest that for a rock to have traveled from Mars to Earth (127 million miles on a short trip) in 4000 years it would have had to travel at a minimum of 1300 miles per hour.  Not only do we not see craters on Mars with the appearance of being that young but even if there were it would seem very unlikely that many rocks would escape Mars gravitational field with that much inertia left to make the trip that fast.  However, millions of rocks thrown off Mars at much slower velocities would gradually drift toward earth orbit over time.

I’ve read somewhere (I can’t find the reference at the moment) that calculations have been made that suggest that given millions of years and the number of craters formed by impact forces strong enough to throw rocks of Mars it is expected that some of these rocks should make their way to Earth’s surface.  To date there are 99 such rocks that have so far been identified and that only represents the rocks that have landed and remained on surfaces that have allowed their identification. Surely there must be tens of thousands of Mars rocks on Earth.  For that many rocks to have made their way from the surface of Mars to the Earth in less than 6000 years I suppose is statistically possible but extremely unlikely.

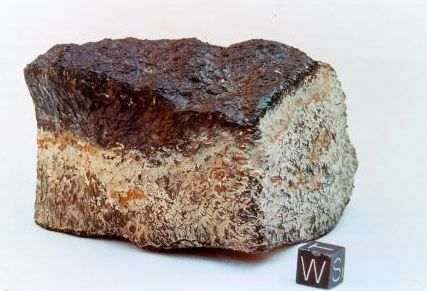

I’ve searched for a young earth creation explanation for Mars meteorites on earth and found almost no mention of the origin of these rocks. The focus is all on the ALH84001 and debunking the proposed evidence of past life claimed to be contained it.  In those discussions the rock is only referred to as “presumably” from Mars as if to cast suspicion on its origins and thereby cast suspicion on the claims of life.   The only creation scientists that I have found that has taken on the Martian origin of the rocks head on is Dr. Walter Brown who I have talked about in the past (Walter Brown and the Origins of Asteroids and Impact Craters on other Planets).  Remember that Brown believes that all the craters on Mars and the Moon are the result of material thrown off Earth during the first stages of the global flood 4000 years ago. That material, according to his flood geology theory, traveled through space impacting Mars and the Moon and so contributed to a flood on Mars just after flood on Earth since so much water was brought by these rocks and icy asteroids.  Brown then casts doubt on the Martian origin of these rocks on Earth. He claims that the gases in the “Mars” rocks on earth are the result of gases that were found in the inner earth and expelled into space which why Mars has those gases today.  Yes, he is saying that the compositions of the Mars atmosphere is in large part the result of gasses transported to Mars!!   The rocks we find today on Earth that look like Mars rocks are really from the pre-flood world that may have gone into Earth orbit and dropped back to Earth very recently.

Meteorites Created with Apparent Age?

For these rocks to have been part of Mars in the original creation but now be on Earth would require a rather unlikely series of events (eg. Brown’s theory).  As a result to maintain a young-earth (and young universe) interpretation of Genesis it may be tempting to just accept the apparent age of the meteorites and transit times but say that God just made the meteorites in transit with built-in cosmic-ray exposure to appear that they had been in space for millions of years and even evidence that the rocks were part of Mars even though they never had been. This would be similar to the creationists argument that starlight was created in transit rather than actually having been emitted from a star.  I’ve addressed the popular apparent age argument numerous times on this blog. Please see:

Meteorite Impact Craters and Apparent Age
A Young Mercury: Apparent Age Redux
Apparent Age: Craters on Mars

Addendum:  Lunar Meteorites?

If there are meteorites from Mars on Earth then have we also identified meteorites from other solar system bodies?

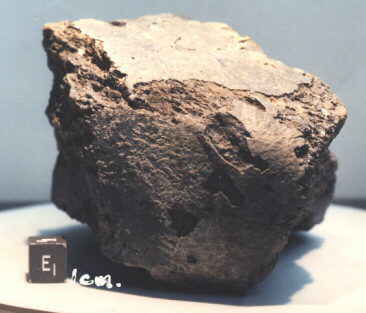

The only other member of the solar system for which we know that we have meteorites on Earth is the Moon.  There are hundreds that have been identified on Earth though they are not nearly as numerous as meteorites of unknown origin.

Reference:

H. Chennaoui Aoudjehane et al. Tissint Martian Meteorite: A Fresh Look at the Interior, Surface, and Atmosphere of Mars. Science. Published online October 11, 2012. doi: 10.1126/science.1224514.

This is an revised version of an article first posted in 2012.
